Detailed Information
Color: Red, Green, Blue
Input Voltage: DC 24V
Dimensions: 5000*8*1.8 mm
Power Consumption: 9w/m
Lumen: 100 lm/w
CRI: Ra>92
PCB Material: Double-sided FPC, 25/50 copper before plating.
Mounting Method: High-adhesion double-sided back adhesive
This model is specially designed to reduce brightness difference between the two ends.

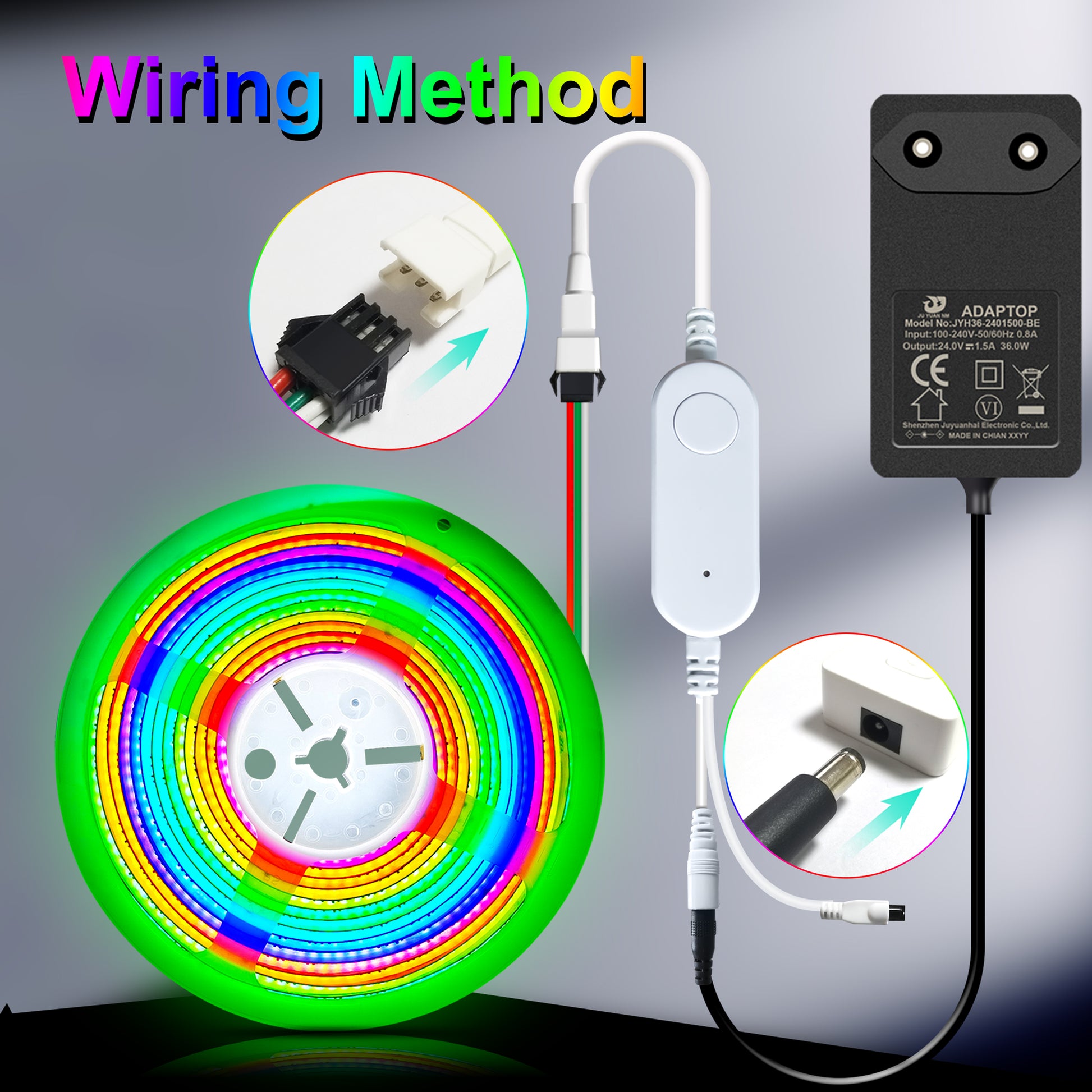

Wire Connection: Dual-end, 15CM RGB Male & Female Aircraft Connector
Waterproof Rating: IP33
Pls Note:
The products doesn't contain power supply and remote controller, you need to match it by yourself.
Product Precautions
- Avoid contact with sharp objects on the LED strip surface during installation to prevent damage to the silicone coating and defects.
- Keep the light-emitting area away from high-temperature objects to avoid burning the silicone coating and affecting the linear lighting effect.
- This strip must be powered by a regulated DC power supply matching its rated voltage. Select a power supply with appropriate wattage according to the number of LED strips to be installed. The total power of LED strips driven by each power supply shall be lower than 80% of the power supply’s rated power.
- If glass glue is required during installation, acid-curing silicone glue is strictly prohibited (acid may corrode PCB boards, silicone and phosphors). Only neutral silicone glue (alcohol-releasing or oxime-releasing type) is allowed.
- Do not bend or twist the LED strip over a short radius, as this may damage the silicone jacket or break the internal electrical structure of the chips .
- It is recommended that the bending diameter of the LED strip at any position be > 1 cm (10 mm).
